Horizontal Stator Winding Inserting Machine for Compressor and Industry Motors with 60-150mm Stator I.D
Compressor Motor Winding Coils Inserting Machine Horizontal Inserting Winding Coils and Paper
The QX series Compressor Motor Winding Coils Inserting Machine features a modular tooling design for quick tooling changes (8 minutes changeover time). Its horizontal winding insertion structure is ideal for large stator production and can be integrated with bovine-eye bearing platforms and Coil Expanding Machines for three-times winding insertion, reducing labor intensity and simplifying loading/unloading.
Technical Parameters
| Model | SMT-QX08 |
|---|---|
| Stator I.D | Φ60~Φ150mm |
| Stator O.D | ≤Φ210mm |
| Stack height | ≤190mm |
| Tooling travel | ≤90mm |
| Compatible wire | Cu / AL |
| Slot number range | 24~48 slot |
| Power supply | 380V/50/60Hz 5Kw |
| Weight | ≈1050Kg |
| Dimension | (L)2380×(W)1180×(H)1700mm |
Key Features
- Automatically inserts winding coils and wedge insulation into stator slots in one operation
- Servo motor-driven coil pushing with pre-pushing function
- Servo motor-driven paper cutting and indexing with adjustable speed
- Adjustable wedge paper length with slot-by-slot, interval slot, or skip slot feeding
- PLC controller with fault detection and diagnosis capabilities
- Pre-feeding paper device ensures consistent paper length
- Low-temperature paper cutting with integrated heating device
- Adjustable coil pushing speed for different wire gauges
- Ergonomic standing operation with two-hand start button
- Quick changeover time of approximately 10 minutes
Component Specifications
- PLC Controller: INOVANCE (China)
- Servo motor system: INOVANCE (China)
- Sensor elements: OMRON (Japan), AUTONICS (Korea)
- Other electrical components: SCHNEIDER (France), IDEC (Japan), Delixi (China)
- Ball screw: HIWIN (Taiwan)
- Bearings: NSK (Japan), SKF (Sweden)
- Pneumatic elements: AirTAC (Taiwan)
- Air source pressure: 0.5~1MPa
- Power: 6.5 Kw (actual configuration may vary)
- Power Source: 3-phase 415V/50Hz
- Weight: ≈1150Kg
- Dimensions: (L)2380×(W)1280×(H)1700mm
Applications
This machine is designed for various induction motors including washing machine motors, air conditioner motors, pump motors, precision servo motors, industrial three-phase motors, fan motors, and new energy motors.
Service and Support
We specialize in developing and manufacturing machines for induction motor production, offering customized solutions when required. Our services include:
- One-year warranty with free technical support and replacement parts
- Overseas after-sales service with rapid response
- Manufacturing technical consulting and turn-key project services
- Production line layout planning assistance
- Staff training and motor cost evaluation services

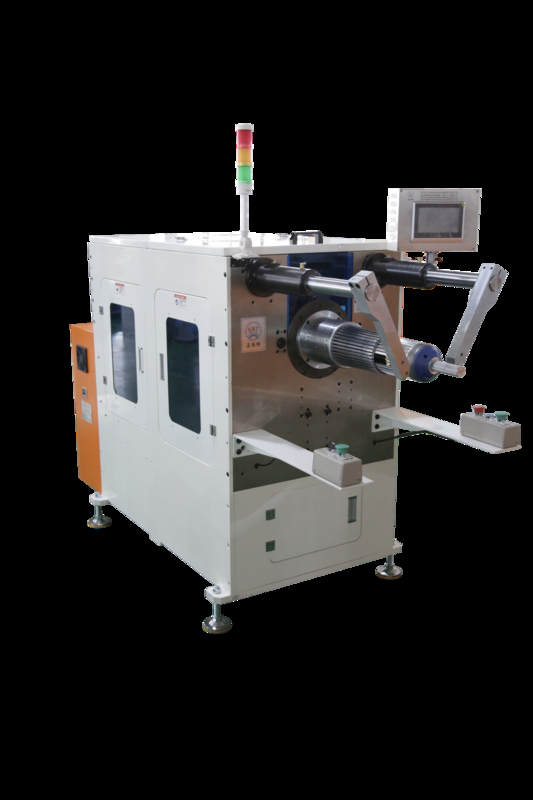

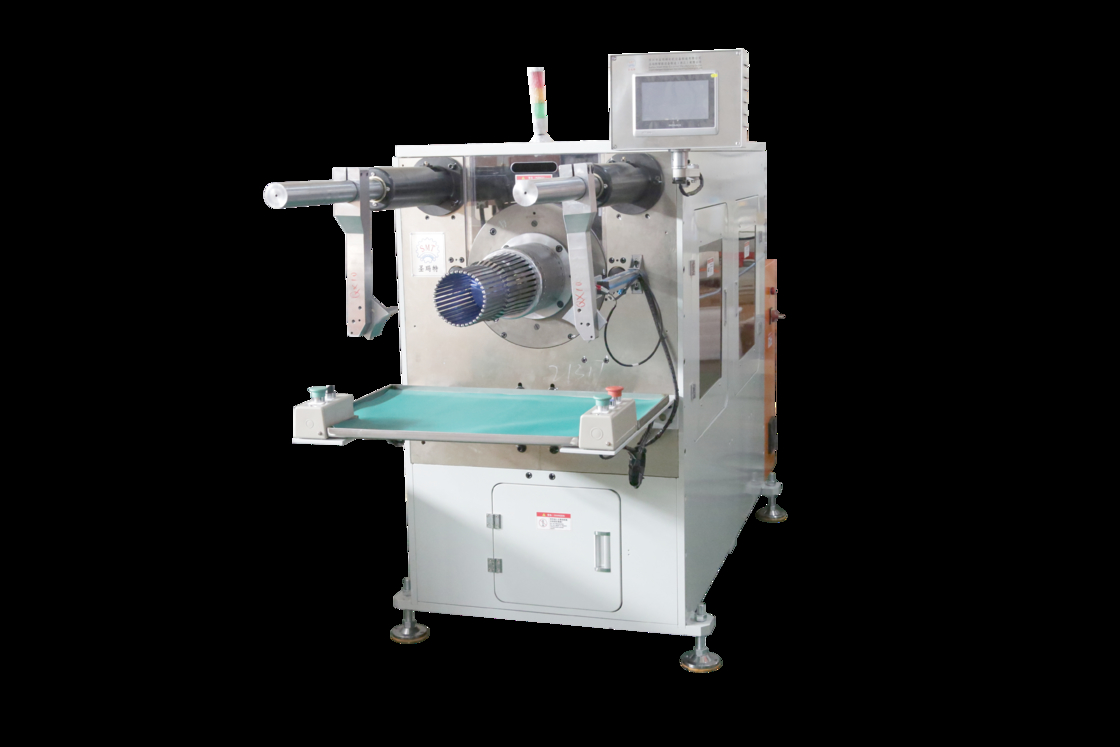

Product Image
